雙JK觸發器CD4027中文資料
雙JK觸發器CD4027中文資料
AC Electrical Characteristics 交流電氣特性：
雙JK觸發器CD4027中文資料
CD4027功能：
CD4027是包含了2個相互獨立的、互補對稱的J－K主從觸發器的單片集成電路。每個觸發器分別提供了J、K置位、復位和時鐘輸入信號及經過緩沖的Q和Q輸出信號，輸入輸出引出端排列與CC4013雙D型觸發器相似。CC4027可用于性能控制、寄存器和觸發器等電路。加在J、K輸入端的邏輯電平通過內部自行調整來控制每個觸發器的狀態，在時鐘脈沖上升沿改變觸發器狀態，置位和復位功能與時鐘無關，均為高電平有效。
從圖可知，內部含有兩套相同的JK觸發器，（1）和（2）為輸出端，（3）腳為前級時鐘輸入，（4）和（7）腳分別是復位和更新腳，本電路要將其接低電平，（5）和（6）腳為JK端，需接高電平。從（1）腳輸出的信號既是所需要的1HZ方波。
Truth Table 真值表功能：
輸入Inputs tn−1 (Note 1)
| 輸出Outputs tn (Note 2)
| ||||||
CL (Note3)
| J
| K
| S
| R
| Q
| Q
| Q
|
↑
| I
| X
| O
| O
| O
| I
| O
|
↑
| X
| O
| O
| O
| I
| I
| O
|
↑
| O
| X
| O
| O
| O
| O
| I
|
↑
| X
| I
| O
| O
| I
| O
| I
|
↓
| X
| X
| O
| O
| X
|
| (No Change)
|
X
| X
| X
| I
| O
| X
| I
| O
|
X
| X
| X
| O
| I
| X
| O
| I
|
X
| X
| X
| I
| I
| X
| I
| I
|

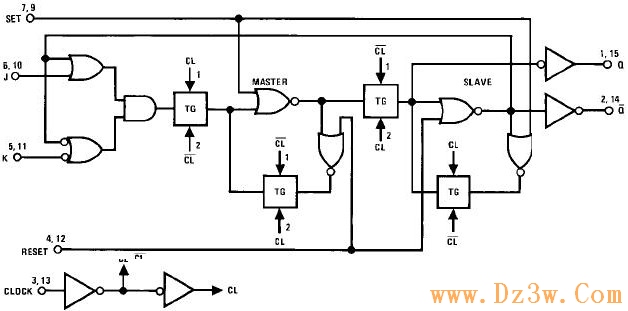

CD4027邏輯圖

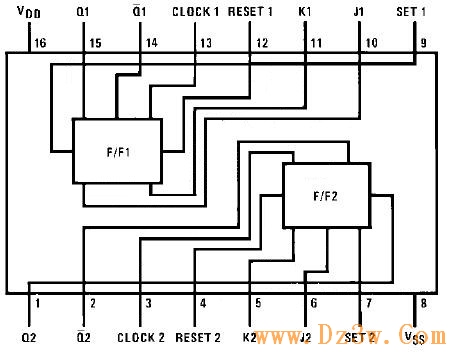

CD4027引腳圖
Absolute Maximum Ratings 絕對最大額定值：
DC Supply Voltage 直流供電電壓 (VDD)
| −0.5 VDC to +18 VDC
|
Input Voltage輸入電壓 (VIN)
| −0.5V to VDD +0.5 VDC
|
Storage Temperature Range儲存溫度范圍 (TS)
| −65℃ to +150℃
|
Power Dissipation功耗 (PD)
| |
Dual-In-Line 普通雙列封裝
| 700 mW
|
Small Outline 小外形封裝
| 500 mW
|
Lead Temperature 焊接溫度(TL)
| |
Soldering, 10 seconds)（焊接10秒）
| 260℃
|
Recommended Operating Conditions 建議操作條件：
DC Supply Voltage 直流供電電壓 (VDD)
| 3V to 15 VDC
|
Input Voltage輸入電壓 (VIN)
| 0V to VDD VDC
|
Operating Temperature Range工作溫度圍 (TA)
| −55℃ to +125℃
|
DC Electrical Characteristics 直流電氣特性：
Symbol 符號
| Parameter 參數
| Conditions 條件
| −55℃
| +25℃
| +125℃
| Units 單位
| ||||
最小
| 最大
| 最小
| 典型
| 最大
| 最小
| 最大
| ||||
IDD
| Quiescent Device Current靜態電流
| VDD=5V,VIN=VDD or VSS
|
| 1
|
|
| 1
|
| 30
| μA
|
VDD=10V,VIN=VDD or VSS
|
| 2
|
|
| 2
|
| 60
| |||
VDD=15V,VIN=VDD or VSS
|
| 4
|
|
| 4
|
| 120
| |||
VOL
| LOW Level Output Voltage 輸出低電平電壓
| |IO| < 1 μA
| ||||||||
VDD = 5V
|
| 0.05
|
| 0
| 0.05
|
| 0.05
| V
| ||
VDD = 10V
|
| 0.05
|
| 0
| 0.05
|
| 0.05
| |||
VDD = 15V
|
| 0.05
|
| 0
| 0.05
|
| 0.05
| |||
VOH
| HIGH Level Output Voltage 輸出高電平電壓
| |IO| < 1 μA
| ||||||||
VDD = 5V
| 4.95
|
| 4.95
| 5
|
| 4.95
|
| V
| ||
VDD = 10V
| 9.95
|
| 9.95
| 10
|
| 9.95
|
| |||
VDD = 15V
| 14.95
|
| 14.95
| 15
|
| 14.95
|
| |||
VIL
| LOW Level Input Voltage 輸入低電平電壓
| VDD=5V,VO=0.5V or 4.5V
|
| 1.5
|
|
| 1.5
|
| 1.5
| V
|
VDD=10V, VO=1V or 9V
|
| 3.0
|
|
| 3.0
|
| 3.0
| |||
VDD=15V,VO=1.5V or 13.5V
|
| 4.0
|
|
| 4.0
|
| 4.0
| |||
VIH
| HIGH Level Input Voltage 輸入高電平電壓
| VDD=5V,VO=0.5V or 4.5V
| 3.5
|
| 3.5
|
|
| 3.5
|
| V
|
VDD=10V,VO=1V or 9V
| 7.0
|
| 7.0
|
|
| 7.0
|
| |||
VDD=15V,VO=1.5V or 13.5V
| 11.0
|
| 11.0
|
|
| 11.0
|
| |||
IOL
| LOW Level Output Current 輸出低電平電流 (Note 7)
| VDD = 5V, VO = 0.4V
| 0.64
|
| 0.51
| 0.88
|
| 0.36
|
| mA
|
VDD = 10V, VO = 0.5V
| 1.6
|
| 1.3
| 2.25
|
| 0.9
|
| |||
VDD = 15V, VO = 1.5V
| 4.2
|
| 3.4
| 8.8
|
| 2.4
|
| |||
IOH
| HIGH Level Output Current 輸出高電平電流 (Note 7)
| VDD = 5V, VO = 4.6V
| −0.64
|
| −0.51
| −0.88
|
| −0.36
|
| mA
|
VDD = 10V, VO = 9.5V
| −1.6
|
| −1.3
| −2.25
|
| −0.9
|
| |||
VDD = 15V, VO = 13.5V
| −4.2
|
| −3.4
| −8.8
|
| −2.4
|
| |||
IIN
| Input Current 輸入電流
| VDD = 15V, VIN = 0V
|
| −0.1
|
| −10−5
| −0.1
|
| −1.0
| μA
|
VDD = 15V, VIN = 15V
|
| 0.1
|
| 10−5
| 0.1
|
| 1.0
| |||
AC Electrical Characteristics 交流電氣特性：
Symbol 符號
| Parameter 參數
| Conditions 條件
| 最小
| 典型
| 最大
| Units 單位
|
tPHL or tPLH
| Propagation Delay Time from Clock to Q or Q 傳播延遲時間從時鐘至Q到Q
| VDD = 5V
|
| 200
| 400
| ns
|
VDD = 10V
|
| 80
| 160
| |||
VDD = 15V
|
| 65
| 130
| |||
tPHL or tPLH
| Propagation Delay Time from Set to Q or Reset to Q 傳播延遲時間設定為Q或重置到Q
| VDD = 5V
|
| 170
| 340
| ns
|
VDD = 10V
|
| 70
| 140
| |||
VDD = 15V
|
| 55
| 110
| |||
tPHL or tPLH
| Propagation Delay Time from Set to Q or Reset to Q 傳播延遲時間設定為Q或重置到Q
| VDD = 5V
|
| 110
| 220
| ns
|
VDD = 10V
|
| 50
| 100
| |||
VDD = 15V
|
| 40
| 80
| |||
tS
| Minimum Data Setup Time 最小數據建立時間
| VDD = 5V
|
| 135
| 270
| ns
|
VDD = 10V
|
| 55
| 110
| |||
VDD = 15V
|
| 45
| 90
| |||
tTHL or tTLH
| Transition Time過渡時間
| VDD = 5V
|
| 100
| 200
| ns
|
VDD = 10V
|
| 50
| 100
| |||
VDD = 15V
|
| 40
| 80
| |||
fCL
| Maximum Clock Frequency 最大時鐘頻率 (Toggle Mode)
| VDD = 5V
| 2.5
| 5
|
| MHz
|
VDD = 10V
| 6.2
| 12.5
|
| |||
VDD = 15V
| 7.6
|
